1. Product Features
High-Density Design
The ODF adopts a high-density modular design, allowing more fiber connection points to be accommodated in limited space, meeting the demands of large-scale fiber optic networks while saving room space.Flexible Configuration
Supports various fiber adapter types (such as SC, LC, FC, ST, etc.), which can be flexibly configured according to actual needs. It is compatible with both single-mode and multi-mode fibers, catering to different application scenarios.Excellent Protection Performance
Equipped with high-quality fiber splice trays and fiber storage units, it effectively protects fiber connectors and excess fibers, preventing fiber damage or tangling, and ensuring stable signal transmission.Convenient Management and Maintenance
Designed with a rational layout and clear labeling, it supports quick installation and operation, facilitating fiber patching, scheduling, and maintenance, thereby reducing network troubleshooting time.High Reliability and Durability
Made of high-quality cold-rolled steel or aluminum alloy, with anti-corrosion and anti-rust surface treatment, it offers excellent mechanical strength and corrosion resistance, suitable for long-term use.Effective Heat Dissipation and Ventilation Design
The scientific structural design ensures good heat dissipation and ventilation, maintaining stable performance during prolonged operation.Modular Design
Supports modular expansion, allowing flexible addition or replacement of modules based on network requirements, meeting future network expansion needs.

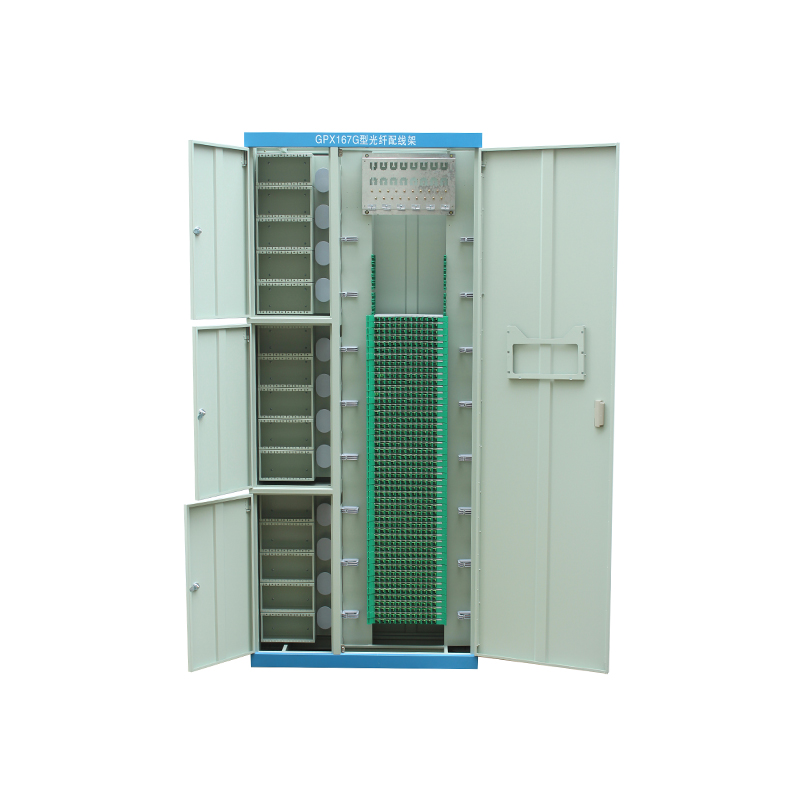

2. Product Structure

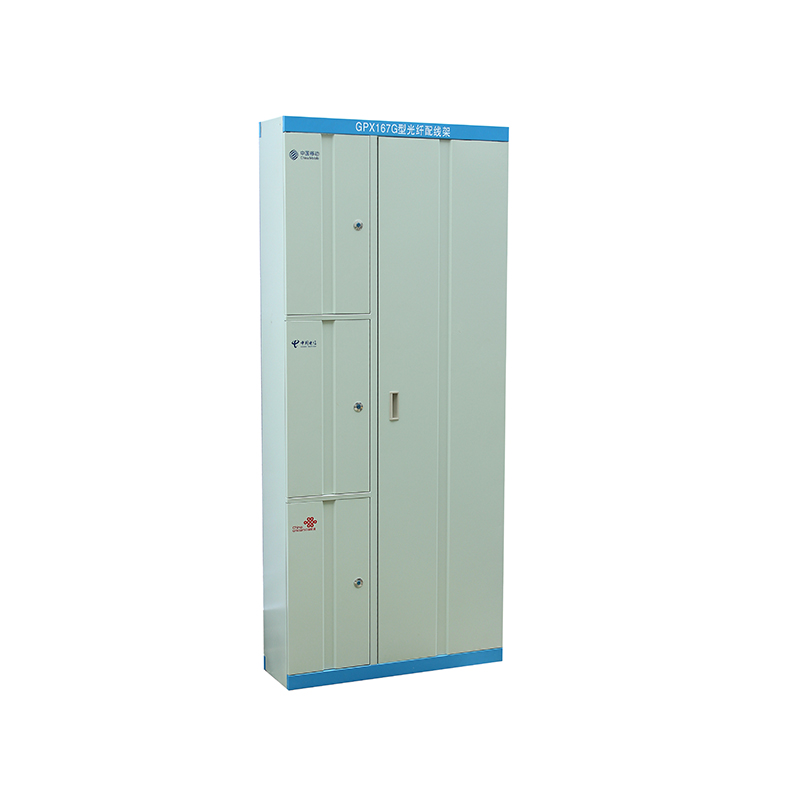

Rack
Made of high-strength metal materials, the rack features a sturdy structure and supports wall-mounted, rack-mounted, or cabinet-mounted installation, adapting to various installation environments.Fiber Splice Tray
Used for fiber splicing and fixation, it adopts a flip-type design for easy operation and maintenance, while providing ample storage space for excess fibers.Adapter Panel
Supports various fiber adapter types, allowing flexible configuration to ensure stable and reliable fiber connections.Cable Management Device
Equipped with cable management rings and racks, it effectively organizes fiber jumpers, avoiding clutter and improving the tidiness and maintainability of the cabinet interior.Grounding Device
Some models are equipped with grounding devices, providing lightning protection and electromagnetic interference protection, further enhancing the equipment's safety.
3. Application Scenarios
Telecommunication Operators
Used for fiber cabling and management in backbone networks, metropolitan area networks, and access networks, supporting the deployment and maintenance of large-scale fiber optic networks.Data Centers
Used for internal fiber connections and scheduling in data centers, meeting high-density, high-bandwidth data transmission requirements.Enterprise Networks
Used for fiber cabling in enterprise local area networks (LAN) and wide area networks (WAN), supporting efficient data exchange and communication.Broadcasting and Television
Used for fiber distribution and management in broadcasting networks, ensuring high-quality and stable signal transmission.Other Fields
Suitable for fiber optic network construction in special fields such as power, transportation, and military, meeting high-reliability requirements in complex environments.
4. Technical Parameters
Rack Dimensions: 2200mm * 950mm * 300mm
Rack Material: Cold-rolled steel
Protection Level: IP20 (for indoor use)
Adapter Types: SC, LC, FC, ST, etc. (optional)
Installation Methods: Wall-mounted, rack-mounted, cabinet-mounted
Operating Temperature: -5℃ ~ +45℃
Relative Humidity: ≤85% (non-condensing)
Fiber Capacity: Supports 144 cores to 1440 cores or higher (customizable based on requirements)
Grounding Resistance: ≤0.1Ω (for models with grounding devices)
The Optical Distribution Frame (ODF), as a core device in fiber optic networks, directly impacts the stability and scalability of the entire network. Our ODF products, with their high-density design, flexible configuration, excellent protection performance, and convenient management features, have become the preferred choice for many customers. Choosing our products means choosing efficiency and reliability!
For more product information or to place an order, please contact our sales team. We are committed to providing you with the best service!
