1. Product Features
Triple-Play Integrated Design
Supports multi-service access for telecommunications, broadcasting, and internet services, enabling efficient integration and allocation of fiber resources to meet the demands of multi-service convergence.High-Density Design
Adopts a high-density modular design, allowing more fiber connection points to be accommodated in limited space, meeting the requirements of large-scale fiber optic networks while saving installation space.Flexible Configuration
Supports various fiber adapter types (such as SC, LC, FC, ST, etc.), which can be flexibly configured according to actual needs. It is compatible with both single-mode and multi-mode fibers, catering to different application scenarios.Excellent Protection Performance
Equipped with high-quality fiber splice trays and fiber storage units, it effectively protects fiber connectors and excess fibers, preventing fiber damage or tangling, and ensuring stable signal transmission.Convenient Management and Maintenance
Designed with a rational layout and clear labeling, it supports quick installation and operation, facilitating fiber patching, scheduling, and maintenance, thereby reducing network troubleshooting time.High Reliability and Durability
Made of high-quality galvanized steel with anti-corrosion, anti-rust, and spray-coated surface treatment, it offers excellent mechanical strength and corrosion resistance, suitable for long-term use.Effective Heat Dissipation and Ventilation Design
The scientific structural design ensures good heat dissipation and ventilation, maintaining stable performance during prolonged operation.Modular Design
Supports modular expansion, allowing flexible addition or replacement of modules based on network requirements, meeting future network expansion needs.

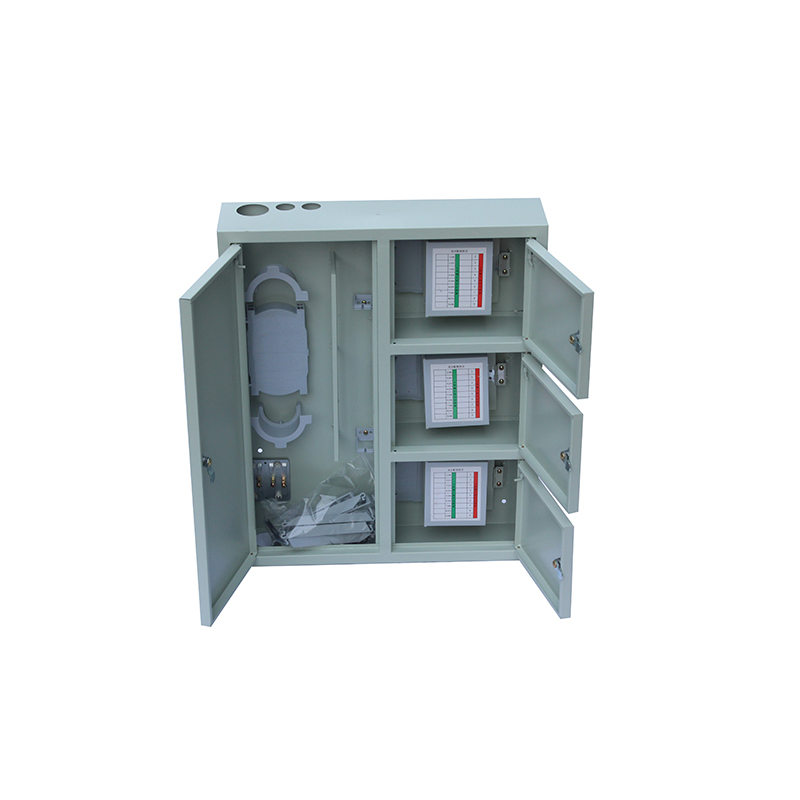

2. Product Structure

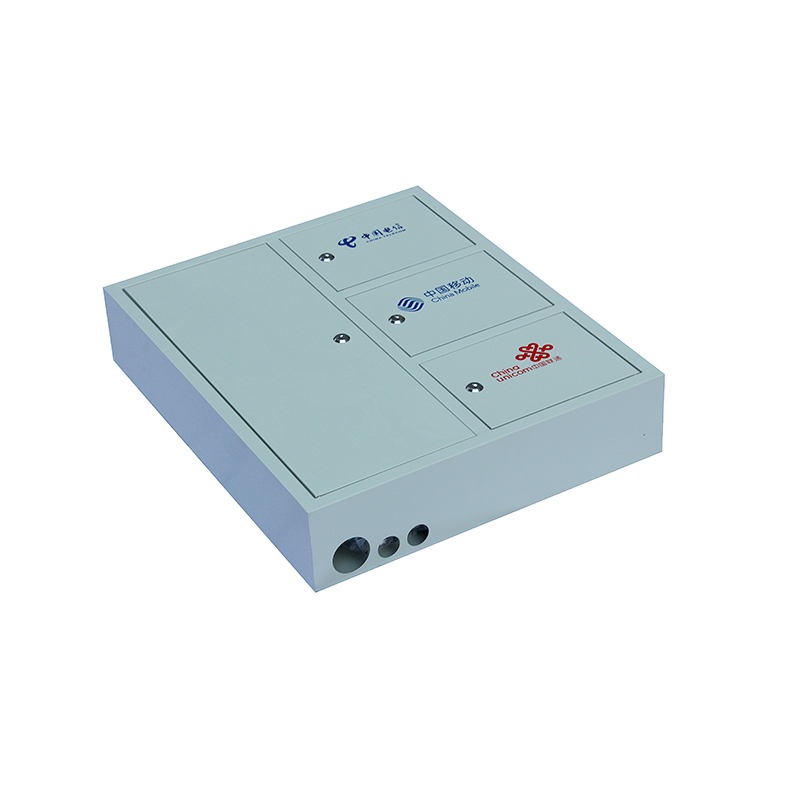

Box Body
Made of high-strength metal materials, the box features a sturdy structure and is treated with anti-corrosion, anti-rust, and spray-coated finishes, making it suitable for various installation environments.Fiber Splice Tray
Used for fiber splicing and fixation, it adopts a flip-type design for easy operation and maintenance, while providing ample storage space for excess fibers.Adapter Panel
Supports various fiber adapter types, allowing flexible configuration to ensure stable and reliable fiber connections.Cable Management Device
Equipped with cable management rings and racks, it effectively organizes fiber jumpers, avoiding clutter and improving the tidiness and maintainability of the box interior.Grounding Device
Some models are equipped with grounding devices, providing lightning protection and electromagnetic interference protection, further enhancing the equipment's safety.
3. Application Scenarios
Residential Communities
Used for fiber distribution and management in FTTH networks, supporting multi-service access for telecommunications, broadcasting, and internet services to meet residents' diverse network needs.Commercial Buildings
Used for internal fiber connections and scheduling in commercial buildings, meeting high-density, high-bandwidth data transmission requirements and supporting multi-service convergence.Office Buildings
Used for internal fiber cabling in office buildings, supporting efficient data exchange and communication to meet enterprises' multi-service access needs.Other Fields
Suitable for fiber optic network construction in schools, hospitals, hotels, and other venues, meeting high-reliability requirements in complex environments.
4. Technical Parameters
Box Material: Galvanized steel
Protection Level: IP55 (for indoor use)
Adapter Types: SC, LC, FC, ST, etc. (optional)
Installation Method: Wall-mounted
Operating Temperature: -5℃ ~ +45℃
Relative Humidity: ≤85% (non-condensing)
Fiber Capacity: Supports 12 cores to 144 cores or higher (customizable based on requirements)
Grounding Resistance: ≤0.1Ω (for models with grounding devices)
Dimensions: 500mm * 600mm * 160mm (customizable based on requirements)
