1. Product Overview
The fiber optic terminal box is a crucial device in fiber optic communication networks, primarily used for the termination, distribution, and protection of optical cables. It provides a secure and stable terminal solution for fiber optic networks and is widely applied in telecommunications, data centers, enterprise networks, broadcasting, and television. With its compact design, flexible configuration, and excellent protection performance, the fiber optic terminal box has become an indispensable key component in fiber optic networks.
2. Product Features
Compact Design
The fiber optic terminal box adopts a compact design, featuring a small size and easy installation, making it suitable for various installation environments, particularly excelling in space-constrained scenarios.Flexible Configuration
It supports various fiber adapter types (such as SC, LC, FC, ST, etc.), which can be flexibly configured according to actual needs. It is compatible with both single-mode and multi-mode fibers, catering to different application scenarios.Excellent Protection Performance
Equipped with high-quality fiber splice trays and fiber storage units, it effectively protects fiber connectors and excess fibers, preventing fiber damage or tangling, and ensuring stable signal transmission.Convenient Management and Maintenance
Designed with a rational layout and clear labeling, it supports quick installation and operation, facilitating fiber patching, scheduling, and maintenance, thereby reducing network troubleshooting time.High Reliability and Durability
Made of high-quality galvanized steel with anti-corrosion and anti-rust surface treatment, it offers excellent mechanical strength and corrosion resistance, suitable for long-term use.Effective Heat Dissipation and Ventilation Design
The scientific structural design ensures good heat dissipation and ventilation, maintaining stable performance during prolonged operation.Modular Design
Supports modular expansion, allowing flexible addition or replacement of modules based on network requirements, meeting future network expansion needs.
3. Product Structure

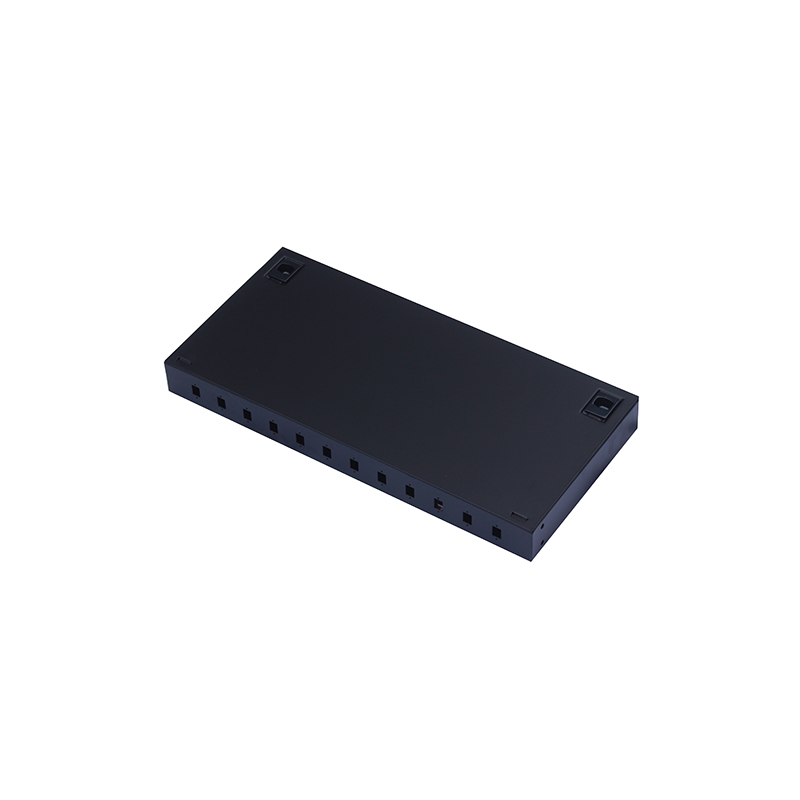

Box Body
Made of high-strength galvanized steel, the box features a sturdy structure and is treated with anti-corrosion, anti-rust, and spray-coated finishes, making it suitable for various installation environments.Fiber Splice Tray

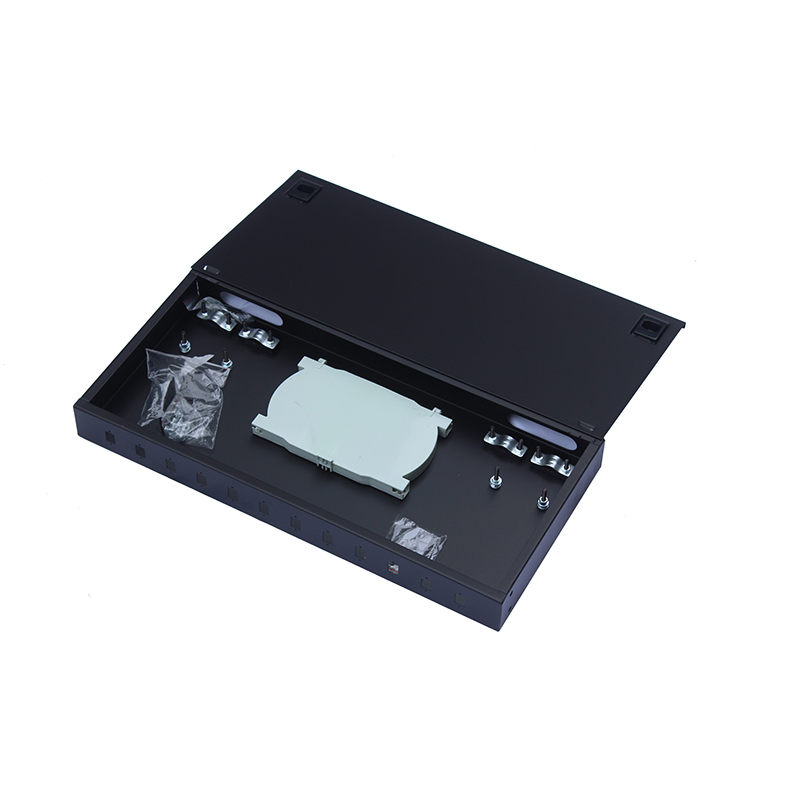

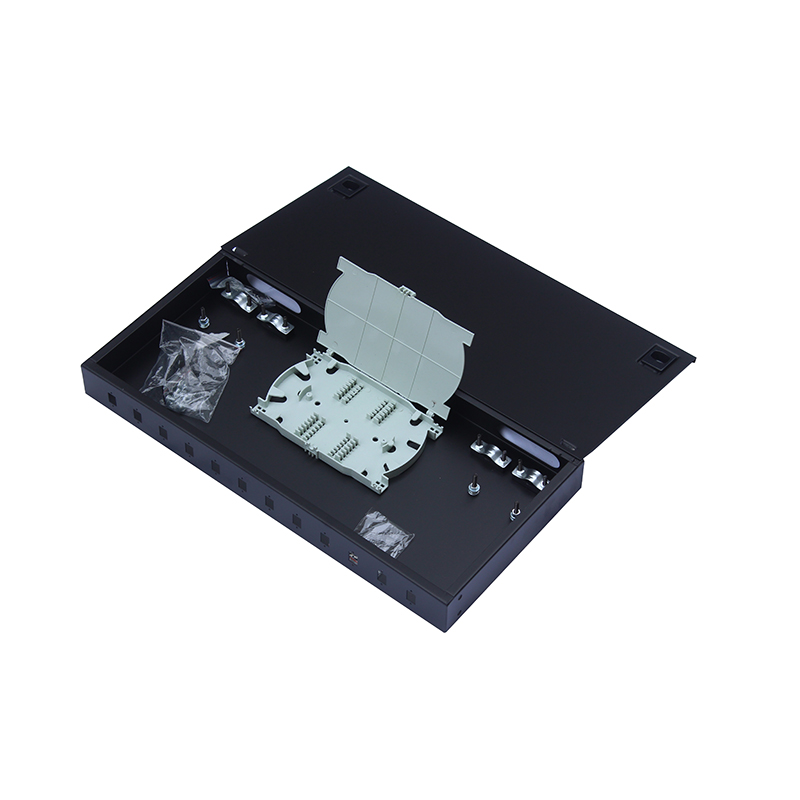

Used for fiber splicing and fixation, it adopts a flip-type design for easy operation and maintenance, while providing ample storage space for excess fibers.Adapter Panel
Supports various fiber adapter types, allowing flexible configuration to ensure stable and reliable fiber connections.Cable Management Device
Equipped with cable management rings and racks, it effectively organizes fiber jumpers, avoiding clutter and improving the tidiness and maintainability of the box interior.Grounding Device
Some models are equipped with grounding devices, providing lightning protection and electromagnetic interference protection, further enhancing the equipment's safety.
4. Application Scenarios
Telecommunication Operators
Used for fiber termination and protection in backbone networks, metropolitan area networks, and access networks, supporting the deployment and maintenance of large-scale fiber optic networks.Data Centers
Used for internal fiber connections and scheduling in data centers, meeting high-density, high-bandwidth data transmission requirements.Enterprise Networks
Used for fiber termination in enterprise local area networks (LAN) and wide area networks (WAN), supporting efficient data exchange and communication.Broadcasting and Television
Used for fiber termination and protection in broadcasting networks, ensuring high-quality and stable signal transmission.Other Fields
Suitable for fiber optic network construction in special fields such as power, transportation, and military, meeting high-reliability requirements in complex environments.
5. Technical Parameters
Box Material: Galvanized steel
Protection Level: IP55 (for indoor use)
Adapter Types: SC, LC, FC, ST, etc. (optional)
Installation Method: Wall-mounted
Operating Temperature: -5℃ ~ +45℃
Relative Humidity: ≤85% (non-condensing)
Fiber Capacity: 12 cores (customizable based on requirements)
