1. Product Overview

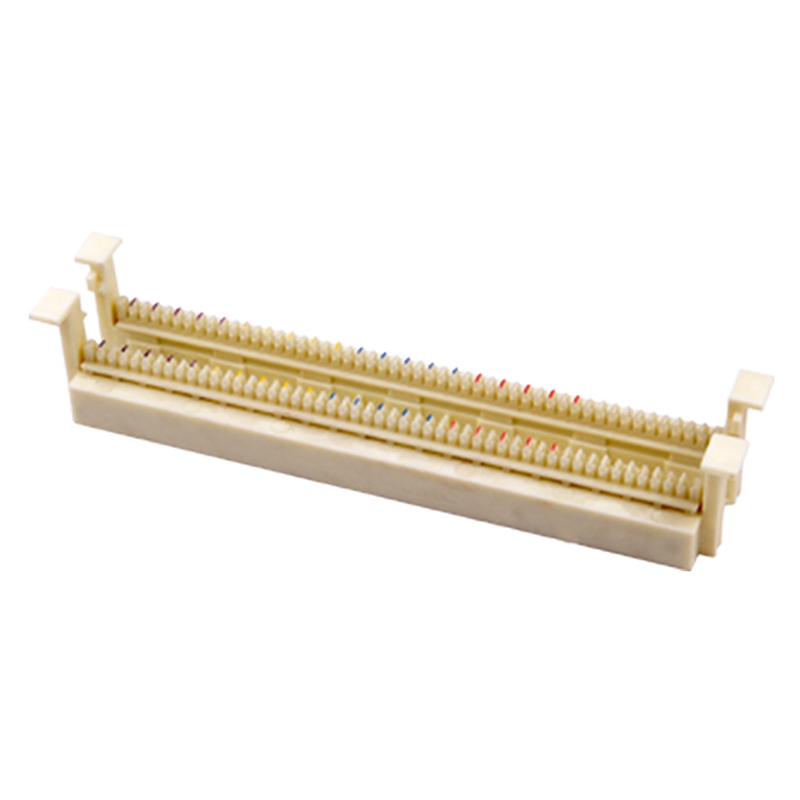

The 110 Patch Panel is a high-density distribution frame widely used in structured cabling systems, primarily designed for cross-connection and management of voice and data communications. Featuring a modular design, it enables fast and flexible patching operations, making it ideal for enterprise LANs, telephone exchange systems, data centers, and other scenarios. It serves as a critical component in structured cabling infrastructures.
2. Product Features
High-Density Design
Offers multiple port configurations (25-pair, 50-pair, 100-pair, etc.), optimizing rack space utilization.
Supports IDC (Insulation Displacement Connector) interfaces for broad compatibility.
Reliable Connectivity
Gold- or nickel-plated terminals ensure low contact resistance and stable signal transmission.
Complies with international standards (e.g., TIA/EIA-568) and supports Cat5e cables.
Easy Management
Modular structure allows front or rear patching, simplifying maintenance and scalability.
Labeling areas facilitate cable identification and reduce operational errors.
Durable Construction
High-strength flame-retardant materials (e.g., PC/ABS) meet UL94 V-0 fire safety standards.
Standard 19-inch rack-mountable design with 1U/2U height options for versatile cabinet integration.
3. Technical Specifications
| Parameter | Specification |
|---|---|
| Interface Type | IDC |
| Supported Cable | Cat5e |
| Port Capacity | 25/50/100-pair (customizable) |
| Insulation Resistance | ≥1000MΩ (500VDC) |
| Contact Resistance | ≤20mΩ |
| Operating Temperature | -20℃ to +60℃ |
| Protection Rating | IP20 (indoor use) |
4. Typical Applications
Telephony Systems: Patch management for telephone switches and PBX systems.
Data Centers: High-density cabling for servers and network switches.
Enterprise Networks: Structured cabling in offices and equipment rooms.
