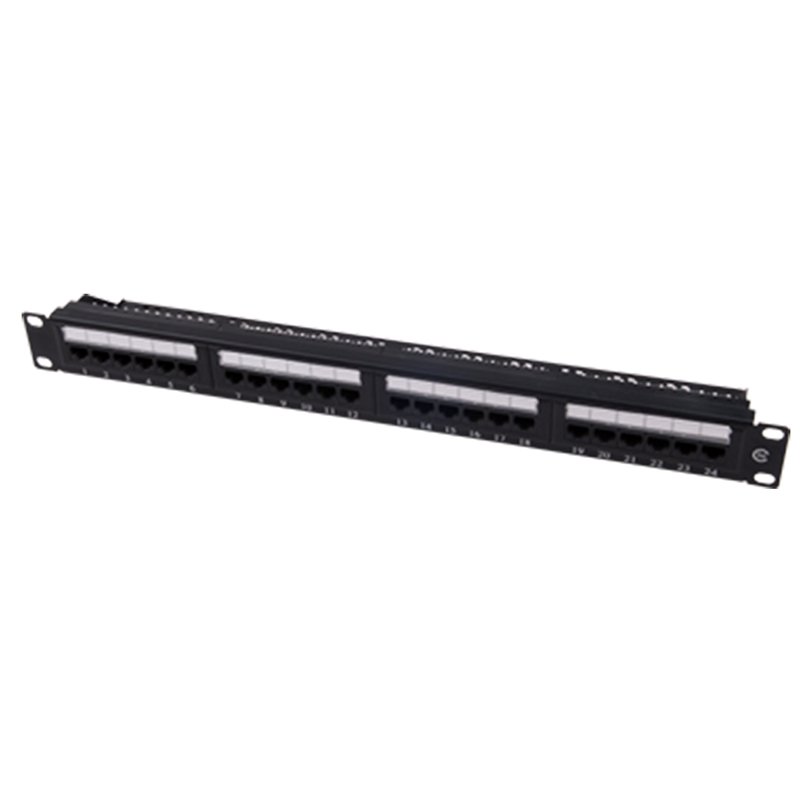

Network Patch Panel Product Introduction
1. Product Overview
The Network Patch Panel serves as the central component in structured cabling systems, designed for centralized management and connection of data communication cables. Featuring standardized interfaces, it enables flexible patching, testing, and maintenance of network equipment. Widely deployed in data centers, enterprise networks, and smart buildings.
Core Functions:
✓ High-density port integration - Optimizes rack space utilization
✓ Modular patching - Enables rapid deployment and troubleshooting
✓ Signal protection - Reduces crosstalk and attenuation for stable transmission
2. Product Types
| Type | Features | Typical Applications |
|---|---|---|
| RJ45 Patch Panel | Supports Cat5e/6/6A/7 copper cables, 8P8C interface | Enterprise LANs, PoE systems |
| Fiber Optic Patch Panel (ODF) | Compatible with LC/SC/MPO connectors, supports single/multi-mode | Data center backbone cabling |
| 110 Voice Patch Panel | IDC punch-down design, 25/50 pair ports | Telephone systems, PBX wiring |
3. Key Advantages
High-Performance Transmission
Gold-plated contacts (50μ" gold layer), insertion loss ≤0.3dB @250MHz
Complies with TIA-568.2-D, ISO 11801 international standards
Intelligent Management
Front-back separated design for clear cable routing paths
Industrial-Grade Durability
Cold-rolled steel housing (1.2mm thickness), IP40 protection rating
Wide operating temperature range (-40℃~75℃) for harsh environments
4. Technical Specifications
| Parameter | Copper Patch Panel Specifications |
|---|---|
| Interface Type | RJ45 (8P8C) |
| Transmission Rate | 10Gbps (Cat6A) |
| Port Density | 24/48 ports (1U) |
| Fire Rating | UL94 V-0 |
| Mounting | 19-inch rack mount |
