1. Product Overview
The Network Jack Panel serves as the terminal access device in structured cabling systems, designed to terminate horizontal cabling at work areas and provide standardized network interfaces. As a critical component connecting desktop equipment to distribution systems, it is widely deployed in office buildings, hotels, schools, data centers, and other facilities to deliver efficient and reliable wired network access.
Core Value Proposition:
✓ Flexible Connectivity - Supports multiple interface combinations (RJ45/fiber/USB)
✓ Easy Management - Modular design enables quick maintenance and upgrades
✓ Aesthetic Installation - Flush-mounted or surface-mounted options adapt to various decoration environments
2. Product Types
| Type | Features |
|---|---|

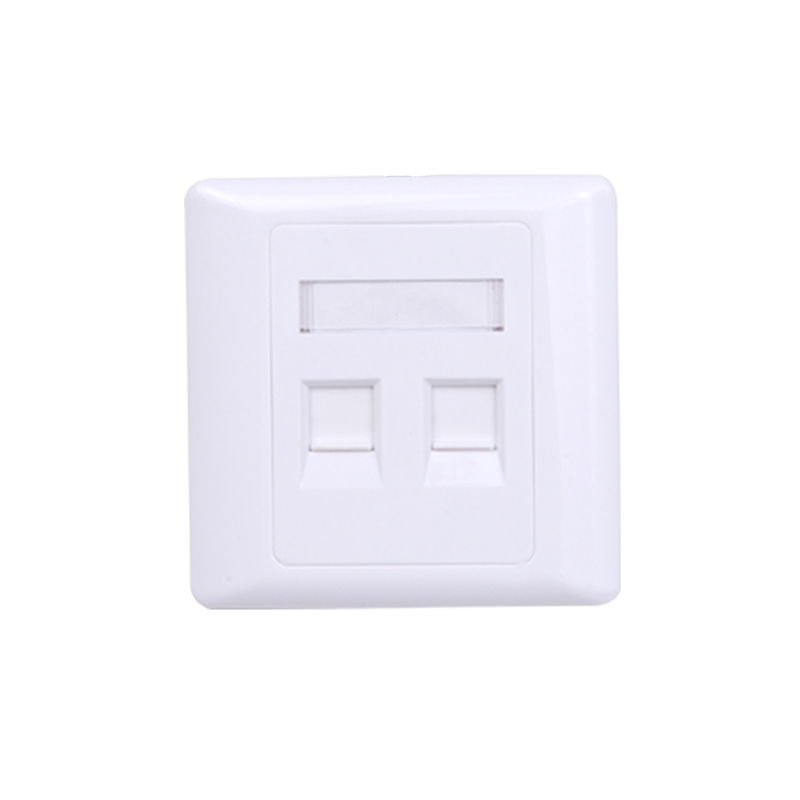

| Single/Dual-port RJ45 Panel | Supports Cat5e/6/6A, compatible with Keystone modules |
| Dust-proof & Waterproof Panel | IP54 rating with spring-loaded dust cover |
3. Key Advantages
Engineer-Friendly Design
Rear cable management channel supports 90° or 180° termination
Tool-less removable modules for interface type replacement
Durable Protection
Flame-retardant PC material (UL94 V-0)
Optional metal housing (EMI shielding >60dB)
4. Technical Specifications
| Parameter | Copper Panel Specifications |
|---|---|
| Interface Standard | RJ45 (8P8C) |
| Transmission Performance | 10Gbps (Cat6A) |
| Termination Method | Punch-down/modular |
| Installation Depth | 35mm (standard 86-type back box) |
| Fire Rating | UL94 V-0 |
