1. Product Overview

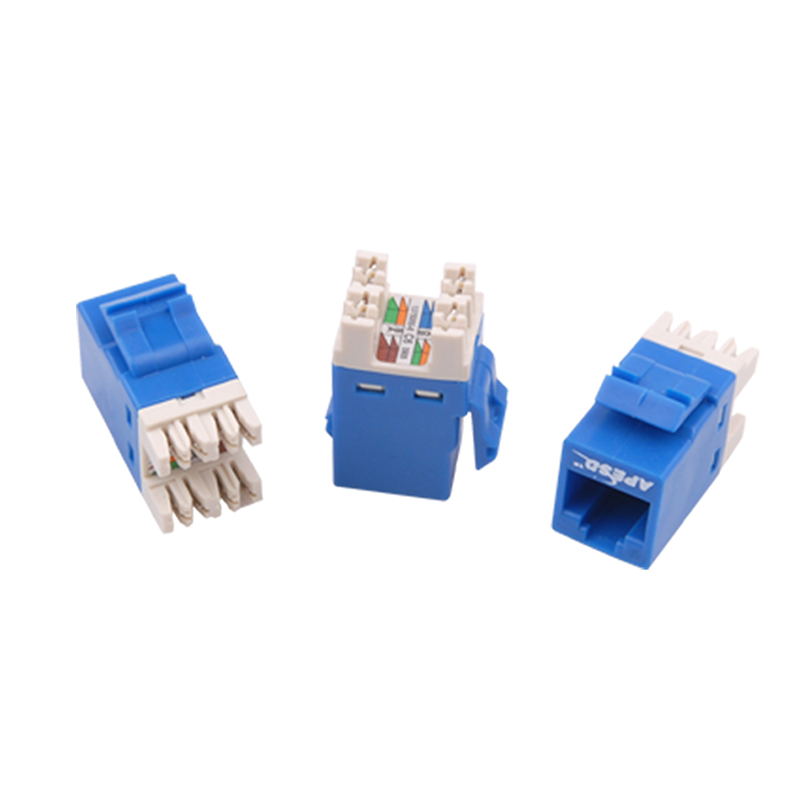

The Network Module is a core connectivity component in structured cabling systems, designed to terminate standardized network interfaces on patch panels, wall plates, or end devices. As a critical node for signal transmission, it directly impacts network stability and data rates, making it essential for enterprise networks, data centers, and smart buildings.
Core Value:
✓ High-Performance Transmission – Supports Gigabit/10G Ethernet with low insertion loss
✓ Universal Compatibility – Modular design works with major patch panel and wall plate brands
✓ Rapid Deployment – Punch-down or tool-less termination saves installation time
2. Product Types
| Type | Features | Standard |
|---|---|---|
| RJ45 Network Module | Supports Cat5e/6/6A/7, 8P8C interface | TIA-568-C.2 |
| Shielded Module | Metal housing, EMI-resistant for industrial use | EN 50173 |
| Keystone Module | Universal interface for flexible integration | Generic standard |
3. Key Advantages
Superior Electrical Performance
Gold-plated contacts (50μ″) ensure low contact resistance (≤20mΩ)
Return loss >23dB @250MHz (Cat6A)
Engineer-Friendly Design
Punch-down: IDC insulation displacement, compatible with 22-26AWG wires
Tool-less: Push-down termination reduces installation time by 75%
Durability & Reliability
≥1,000 mating cycles (IEC 60603-7 compliant)
UL94 V-0 flame-resistant, operating temperature -40℃~75℃
4. Technical Specifications
| Parameter | RJ45 Copper Module |
|---|---|
| Transmission Rate | 10Gbps (Cat6A) |
| Termination Method | Punch-down/Tool-less |
| Insertion Loss | ≤0.5dB @250MHz |
| Protection Rating | IP20 |
